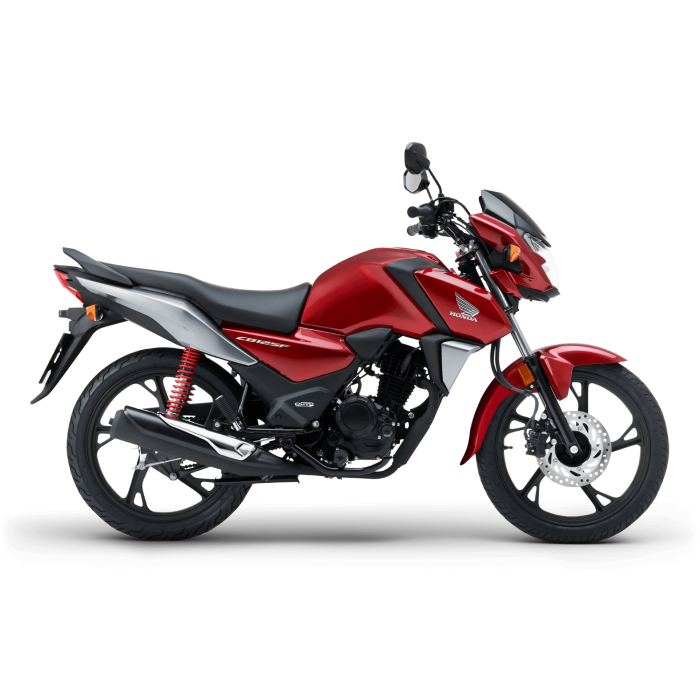

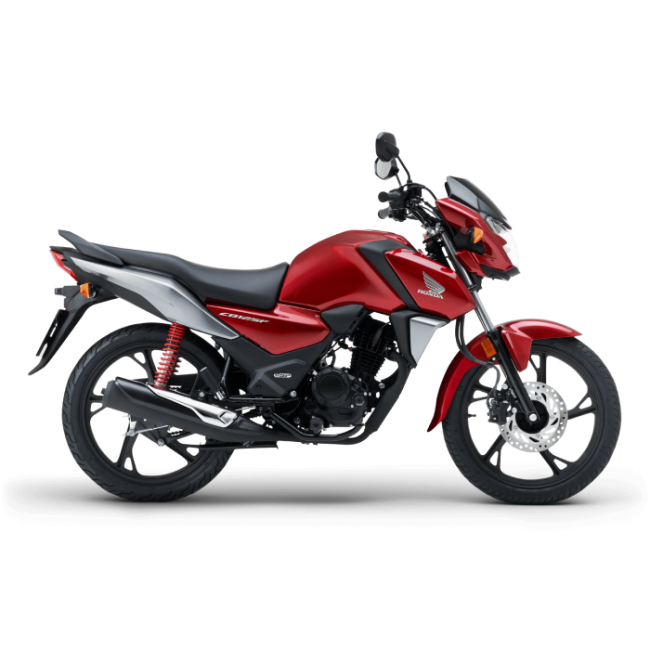

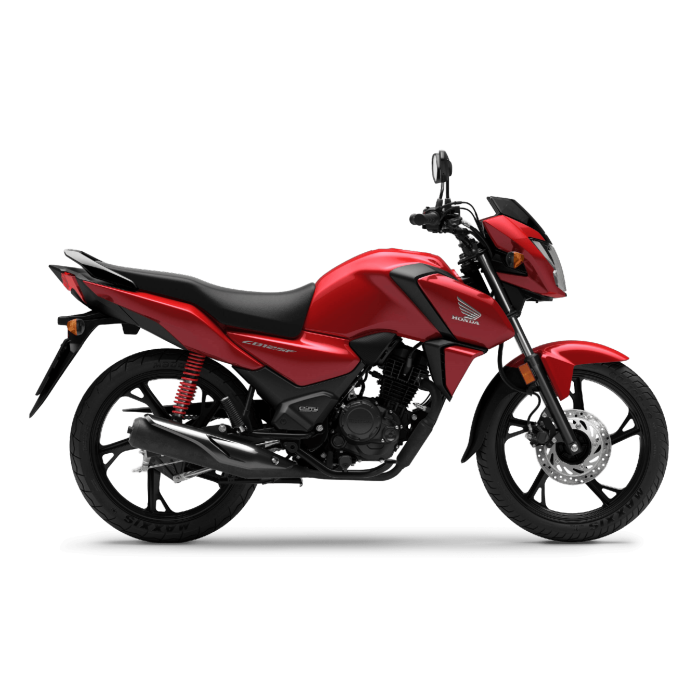

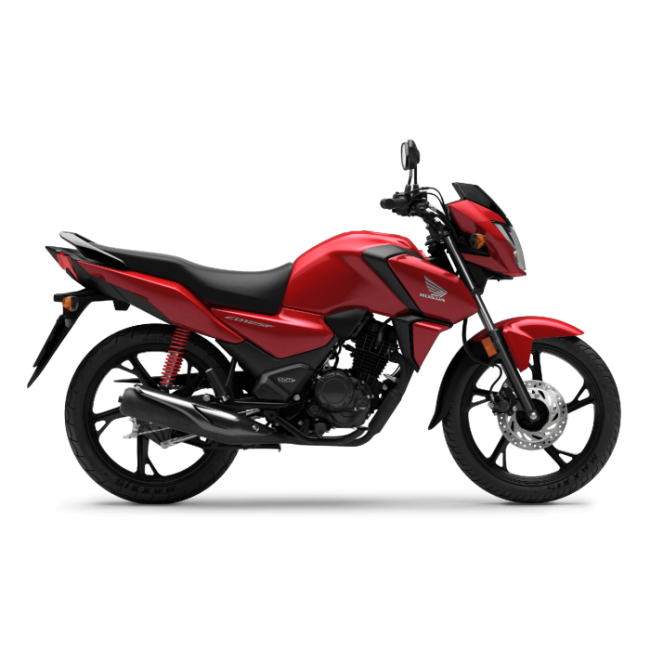

CB125F

Refined from the wheels up, the CB125F benefits from updates to the front and rear cowl as well as new LED headlights all-round, providing a more modern aesthetic. A new 4.2-inch TFT screen has been added, keeping you up to date and connected whilst on the move.

5-Speed Transmission
Enhanced Smart Power (eSP) Engine
LAMS Approved
Upright Seating Position

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Choose Your Bike

From $3,895

Qty

Enquire

Smart Power. Long Range. Low Waste.

The single-cylinder, air-cooled, 2-valve eSP (enhanced Smart Power) PGM-FI fuel-injected engine is built tough – but it’s clever, too. It delivers smart acceleration and impressive fuel efficiency of 67km/l (1.4l / 100km), offering a potential range of up to 800km between fill-ups. To help maximise efficiency, the Auto Idle Stop function automatically shuts off the engine at traffic lights or during short stops, cutting emissions and avoiding unnecessary fuel use. It works in any gear and can be deactivated using the button on the left-hand switchgear.

Features

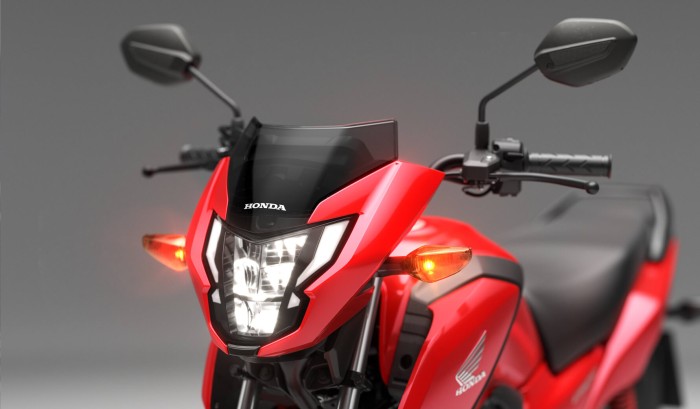

More Aggressive Styling

Angular nose fairing and fly screen cut through air, while a broad fuel tank with silver side shrouds delivers a look true to the CB family.

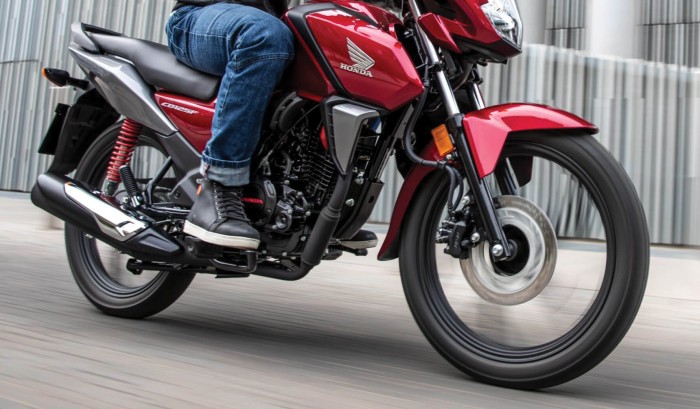

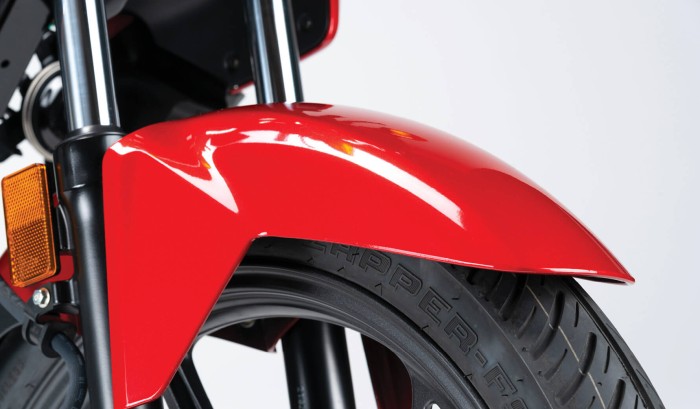

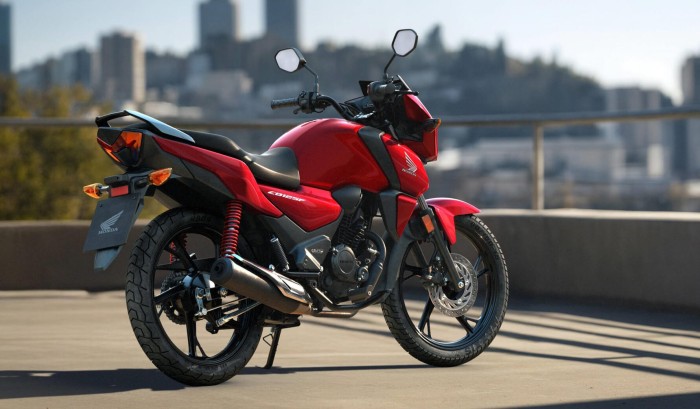

Tough Frame and Supple Ride Quality

A high-tensile tubular steel frame offers durability, paired with impact-absorbing suspension. Seat height is 790mm, with room for a passenger.

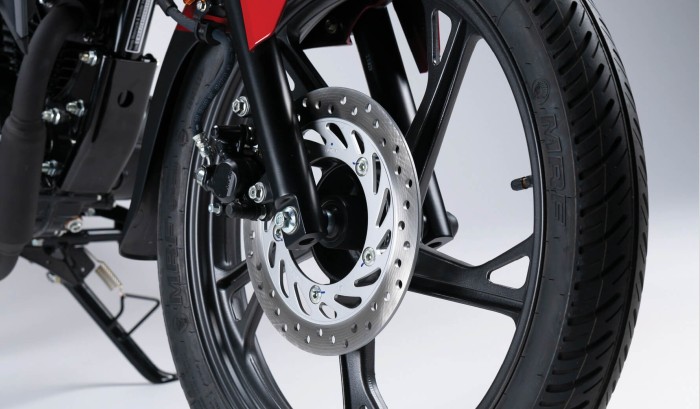

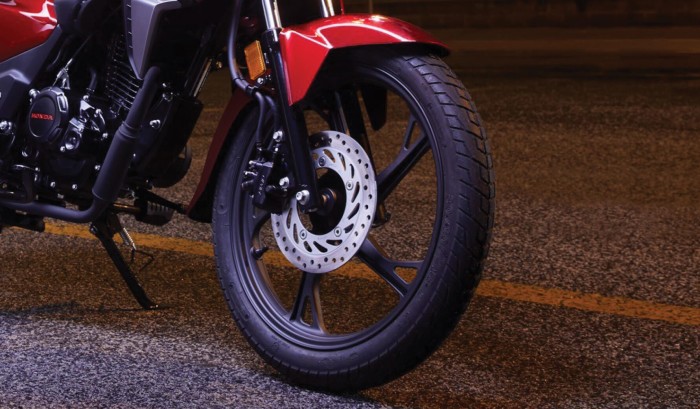

Combined Braking System

Combined Braking System (CBS) means front and rear brakes are simultaneously applied, for swift and effective braking, and extra peace of mind in tricky situations.

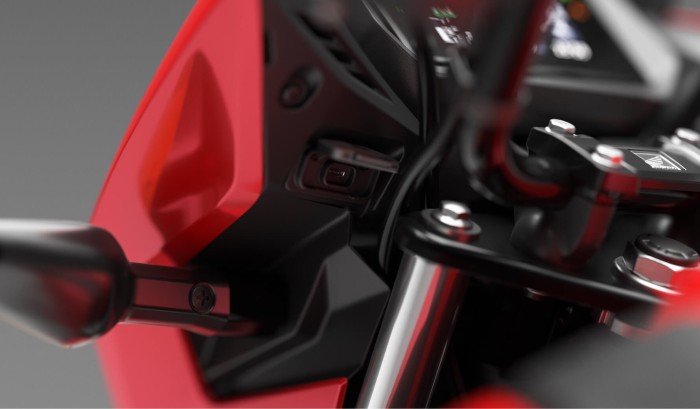

USB-C Charging Point

A USB Type-C socket in the storage compartment allows easy on-the-go charging for devices, keeping you connected wherever the road leads.

The Perfect Starter

An ideal commuter bike for learners or perfect for experienced riders who want a cost effective commuter. With smooth power, low-maintenance and cost effective running.

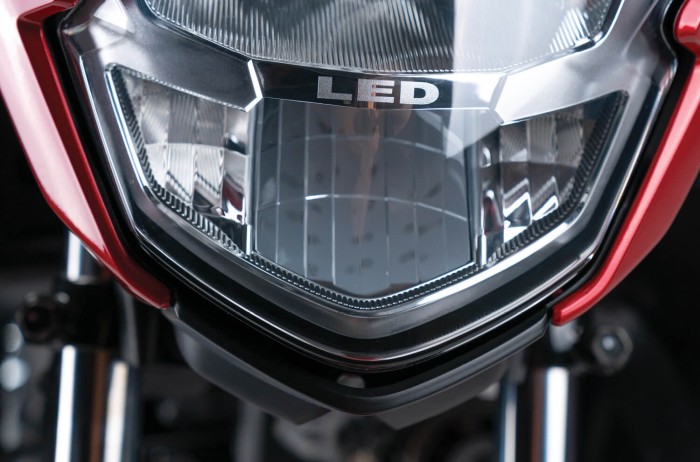

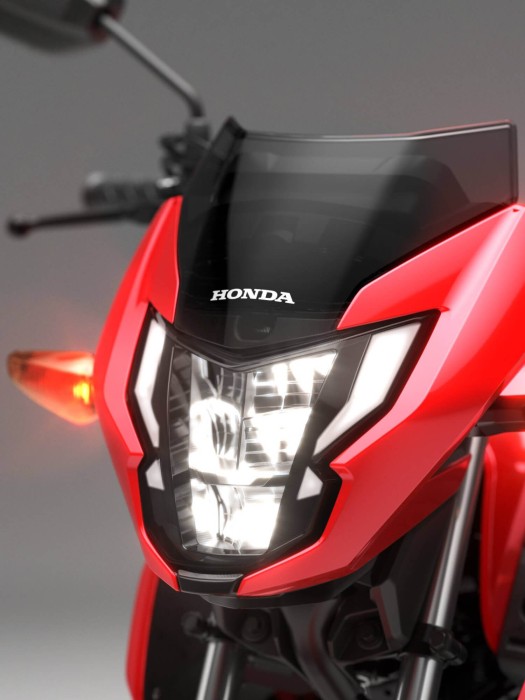

LED Headlight

Premium LED headlight is brighter than traditional halogen headlight, has a more focused beam that is longer and wider, giving you more visibility and safety.

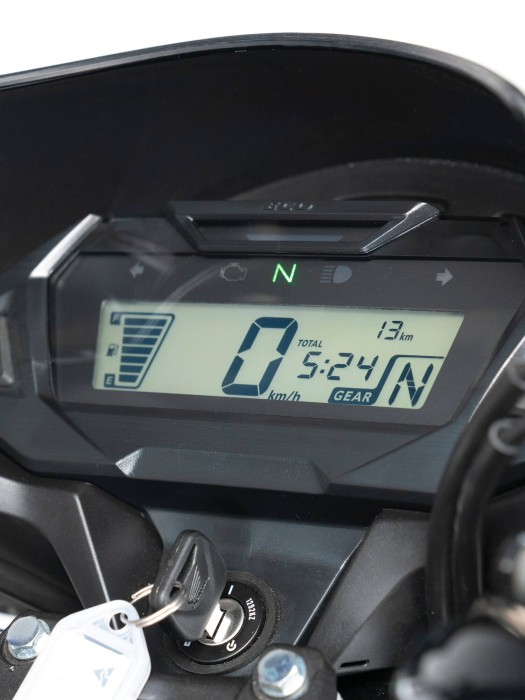

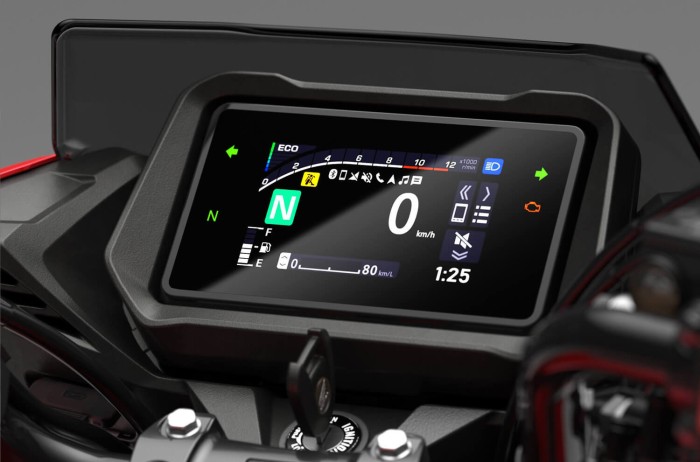

4.2-inch TFT Screen

The easy to read 4.2 inch TFT screen shows gear position, fuel economy, and more.

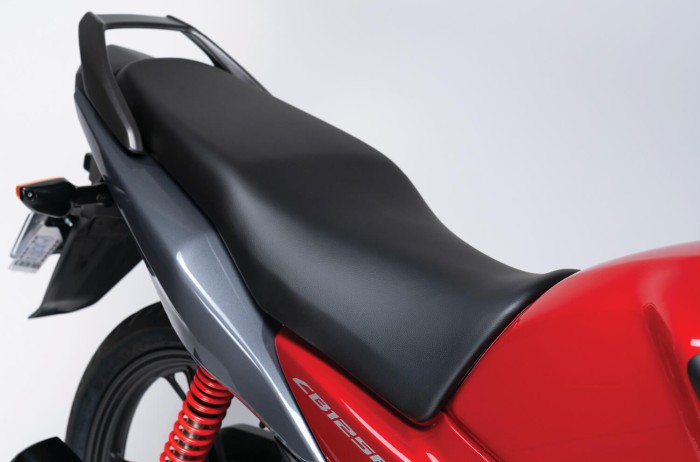

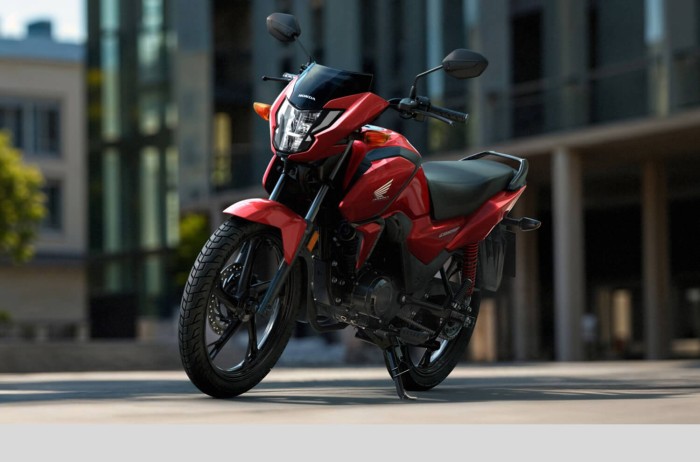

Comfortable Seat

The seat is long and comfortable, great for daily riding. It also integrates smoothly with the fuel tank, improving comfort and also the design flow of the motorcycle.

Specifications

Engine

Engine Type	Air-cooled single-cylinder SOHC enhanced smart power (eSP) 4-stroke
Engine Displacement	124 cc
Bore and Stroke	50mm x 63.1mm
Compression Ratio	10:1
Fuel System	Programmed fuel injection (PGM-FI)
Cylinders	1
Valves	2
Oil Capacity	1 litres

Transmission

Starter	Electric
Final Drive	Chain
Transmission Type	Manual 5-speed with Idle Stop/Start
Clutch	Wet, multiplate with coil springs

Wheels, Suspension, Steering & Brakes

Wheels Front	18 inch five spoke aluminium
Wheels Rear	18 inch five spoke aluminium
Suspension Front	30mm telescopic forks
Suspension Rear	Dual shocks with five stage preload
Brakes Front	Single 240mm disc with 2 piston caliper
Brakes Rear	130mm drum (2 channel Combined Braking System)
Tyres Size Front	80 / 100 - 18
Tyres Size Rear	100 / 80 - 18
Rake Caster Angle	26 degrees

Dimensions & Height

Wheelbase	1280 mm
Ground Clearance	160 mm
Seat Height	790 mm
Kerb Weight	117 kg
Fuel Capacity	11 litres
Length	2027 mm
Width	751 mm
Height	1091 mm
Frame Type	Steel Diamond
Minimum Turning Radius	2.04 m

Instruments & Electronics

Instruments	4.2 Inch Full Colour TFT Display
Headlight	LED
Tail Light	LED
USB Type	USB-C
LAMS Approved	Yes

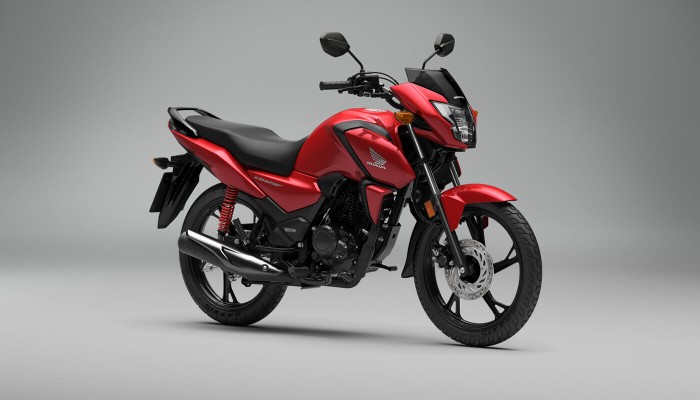

Test Ride a Honda CB125F

Ready to test out a road bike? Book your test ride online and experience a Honda for yourself. Just select your local dealer, fill in your details and you'll be riding in no time.

Learn More

2026-cb125f-product-page-1400-x-800-test-ride

cb125f-product-page-zig-zag-img2-1400x800-01

Honda Rider Finance

Honda proudly partners with UDC to offer a great range of finance options. Talk to your local Honda dealer today to find the best finance solution for your needs or apply online today. We can help you onto a new Honda, whether you are looking at a new ATV, Side by Side, Off-road bike, Road bike or Scooter.

Learn More

Related Information

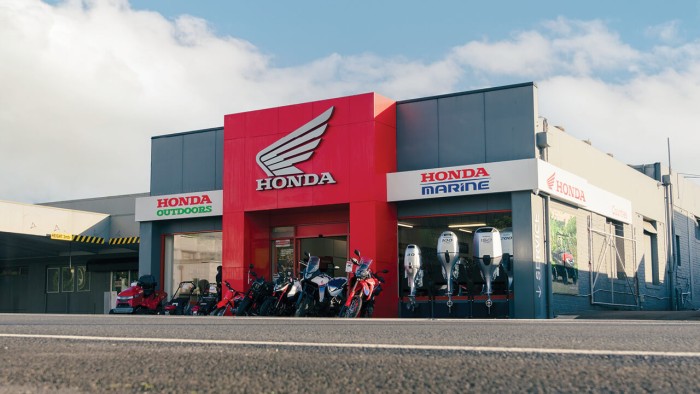

Nationwide Dealer Network
